Zaccaria House of Diamonds (1978)
this is an unrestored machine
click on the images to enlarge

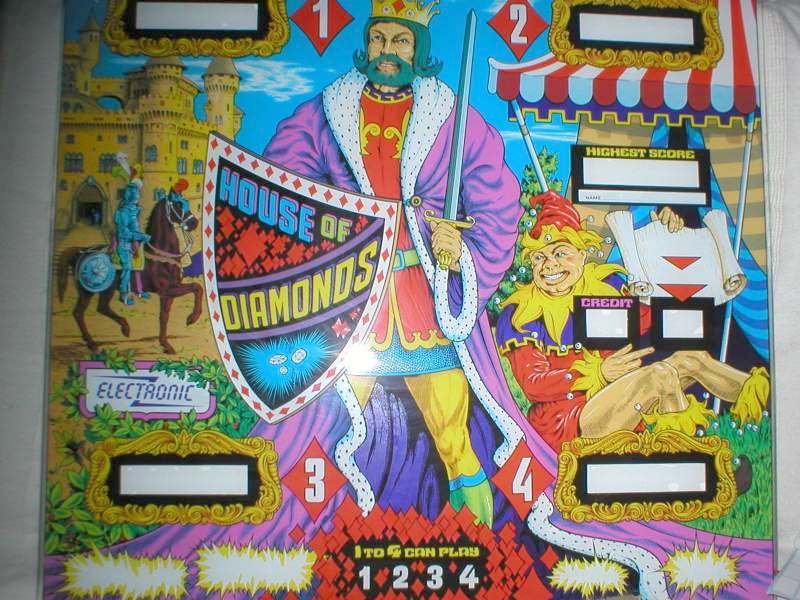

backglass - please note the "Electronic" logo: solid state pins where big news in 1978!

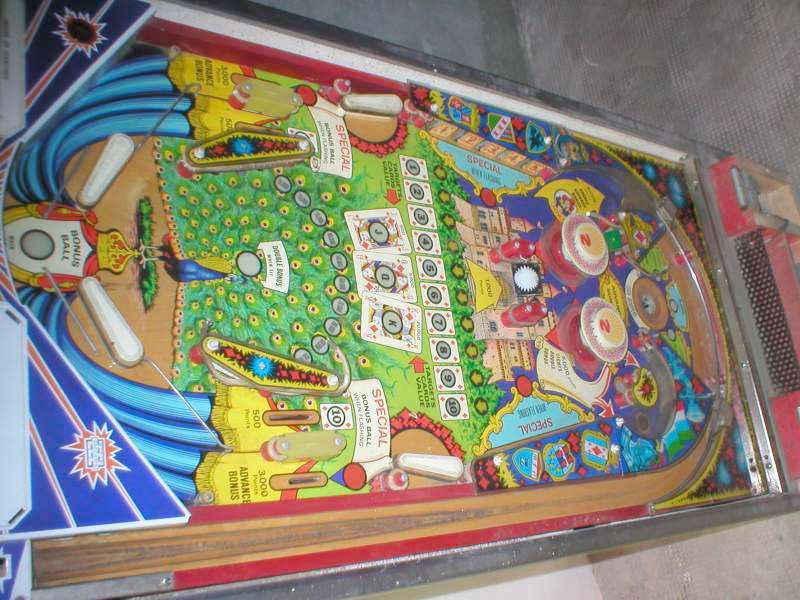

playfield view - House of Diamonds was one of the first solid-state, four players Zaccaria pins

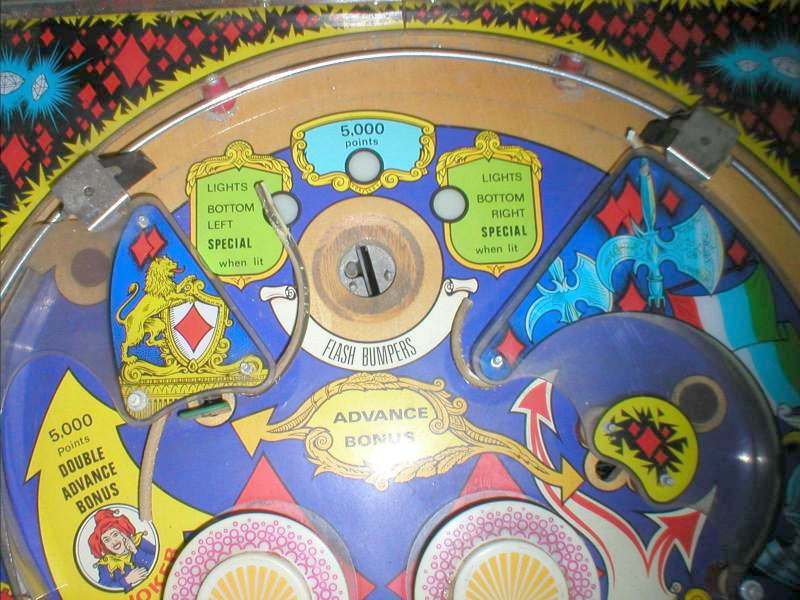

top hole - the top playfield has many similiarities with Winter Sports (ipdb link)

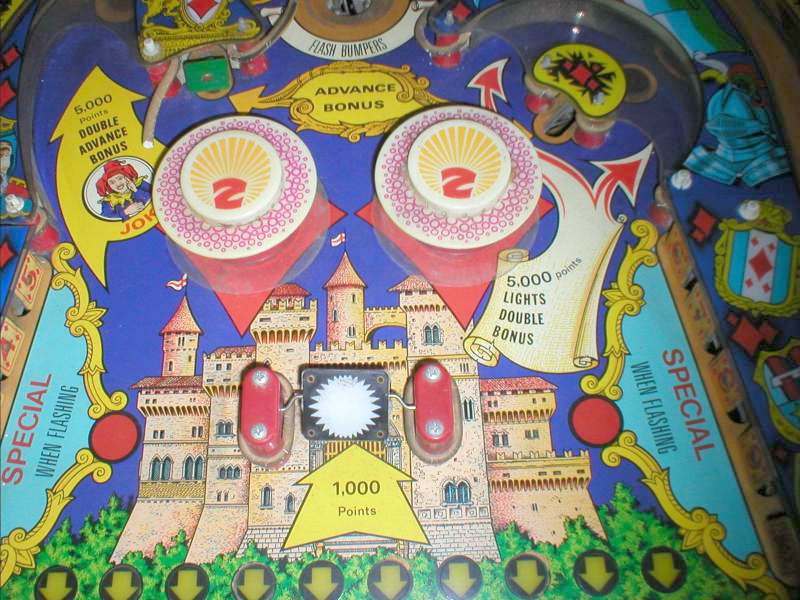

bumpers/spinner - the top right passage seems inspired by Williams Space Mission (ipdb link)...

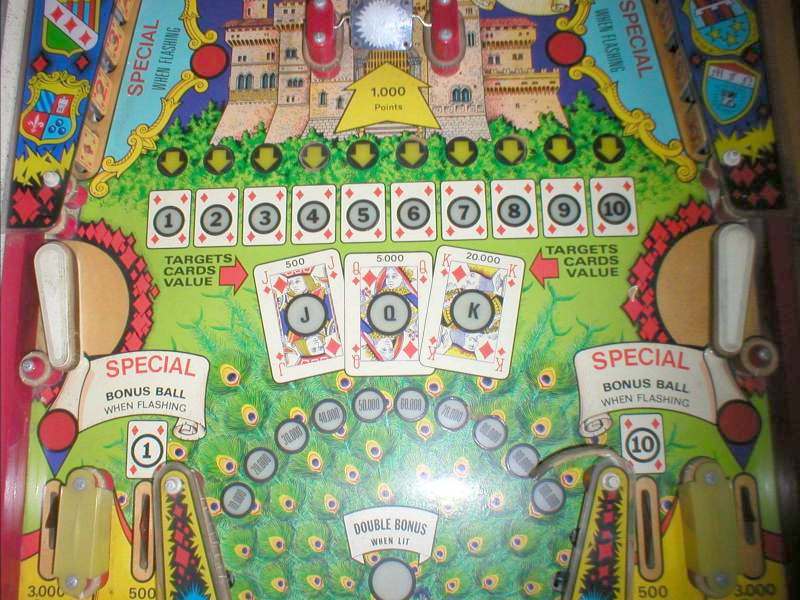

middle pf - ...but the arrangement of the upper flippers is quite original

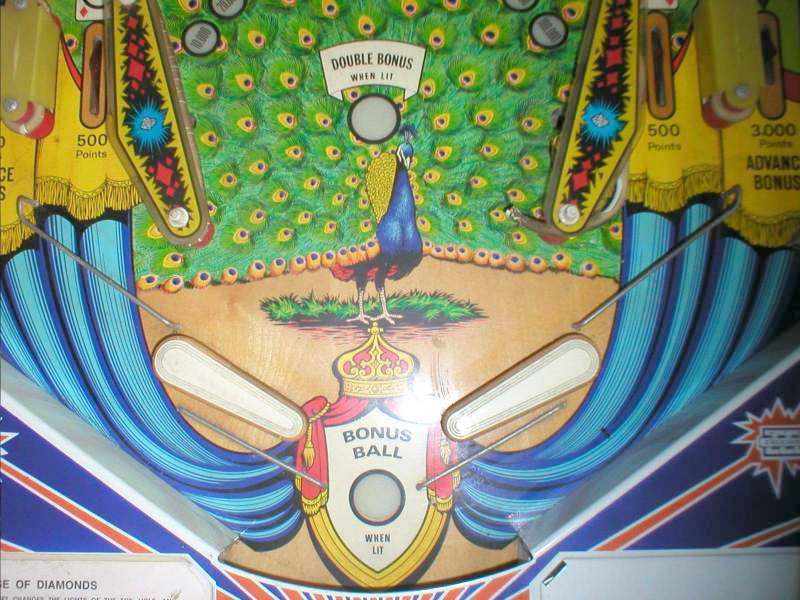

lower pf - how many pins feature a peacock? :-)

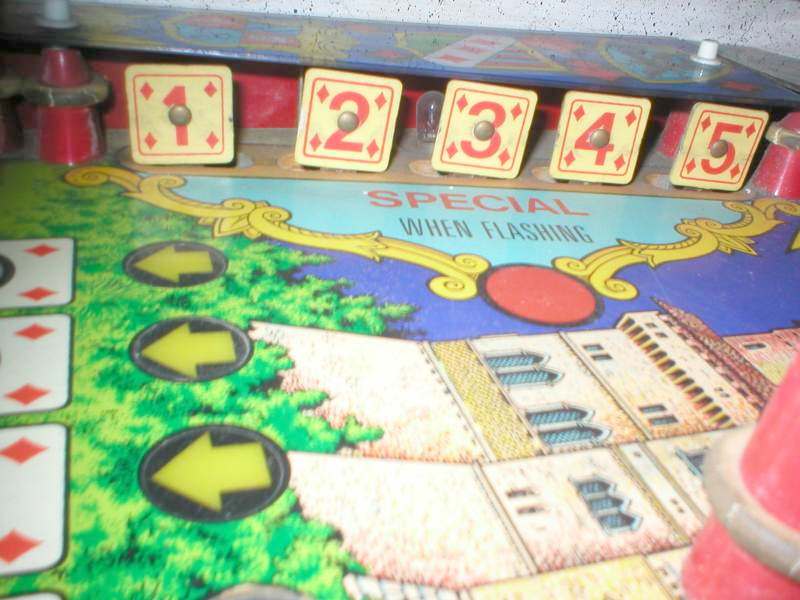

cards targets - left side

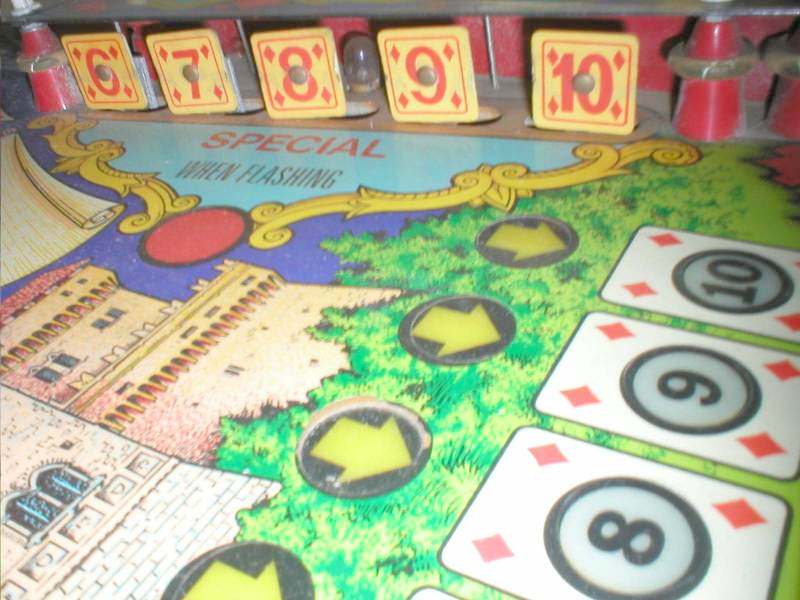

cards targets - right side. Hod was build also in an electro-mechanical version, Queen's Castle (ipdb link). It is unknown how many units
were build for each version.

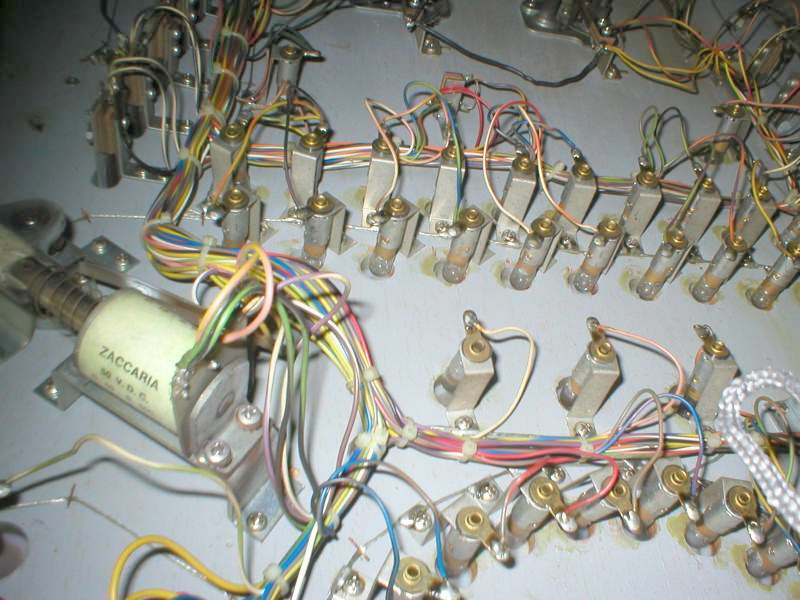

under the playfield

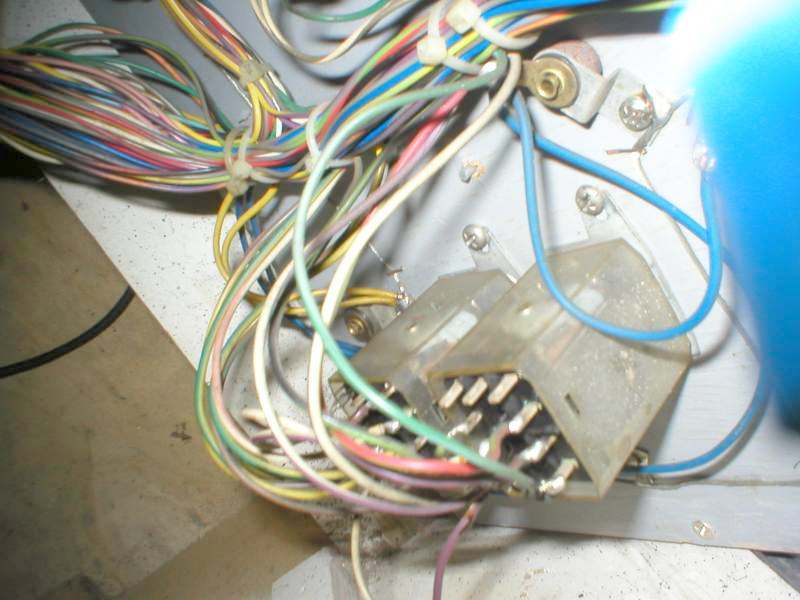

two flipper relays

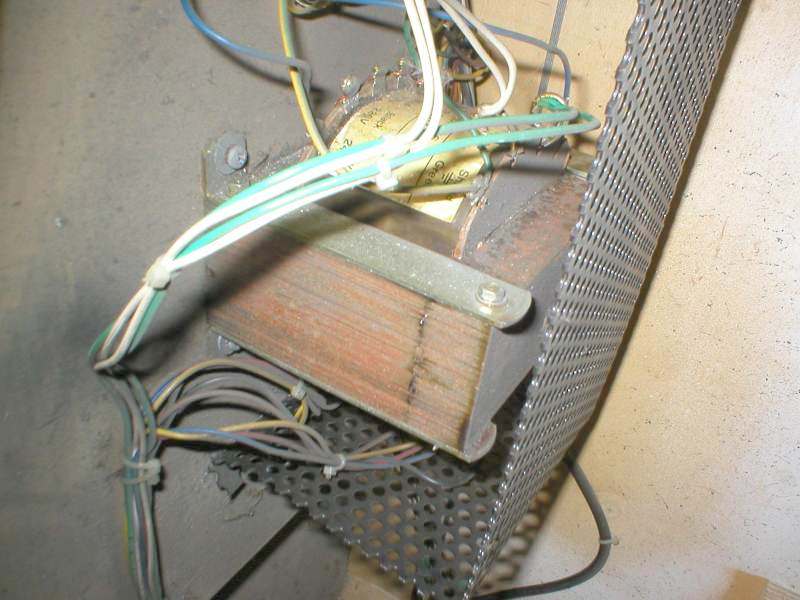

power transformer
cabinet artwork - is this the original MEDIEVAL MADNESS? :-)
Restoration log
- machine in storage at home
- backglass sealed with protective paint
- first set of eprom dumped (tnx Doug): two eproms out of five were BAD!! Another set is available, cross your fingers..
ATTN House of Diamonds owners:
the Eproms for this pin haven't been dumped yet. Please contact me if you own this pin or a set of eproms.
le Eprom di questo flipper non sono state ancora scaricate. Per favore contattatemi se possedete questo flipper o le sue Eprom.
